Transportable Computer Workstation

Design Thesis Project

Project Overview

This project was my thesis for my master's degree. I set out to create a product that helps remote workers turn work from home into work from anywhere. I did this by transforming a traditional desk setup into a portable digital workstation housed in a backpack. The journey began with 10 weeks of design research to outline the problem, followed by 10 weeks of ideation and rapid prototype iteration. The final result was a looks-like and works-like prototype of a final product containing an adjustable monitor, integrated power bank, and USB-C hub inside a travel-sized backpack.

Final Result

Based on my user research I identified that for many remote workers, their screen setup is the biggest thing keeping them tied to their desks. Because of this I centered the design of my portable workstation around the monitor which can raise and lower as well as tilt to achieve optimal viewing. The contained batteries allow the user to work unconnected from power for around 4 hours at a time, and the USB hub allows for all of their peripherals to be attached. The laptop can either be used as a second monitor, or stowed in the rear pouch for a compact layout.

Prototyping

I started prototyping with rough cardboard and foam core mockups to get initial feedback from people on form factors. As the design evolved, I continued to add more and more functional features until I ended up with my final working prototype. In its final form this product would consist of a mainboard which contains all of the electronics, an injection molded housing for the base of the devices, a sheet metal frame to support the monitor and allow for adjustability, and a fabric outer casing to provide storage and carrying straps as well as impact protection.

Sketches

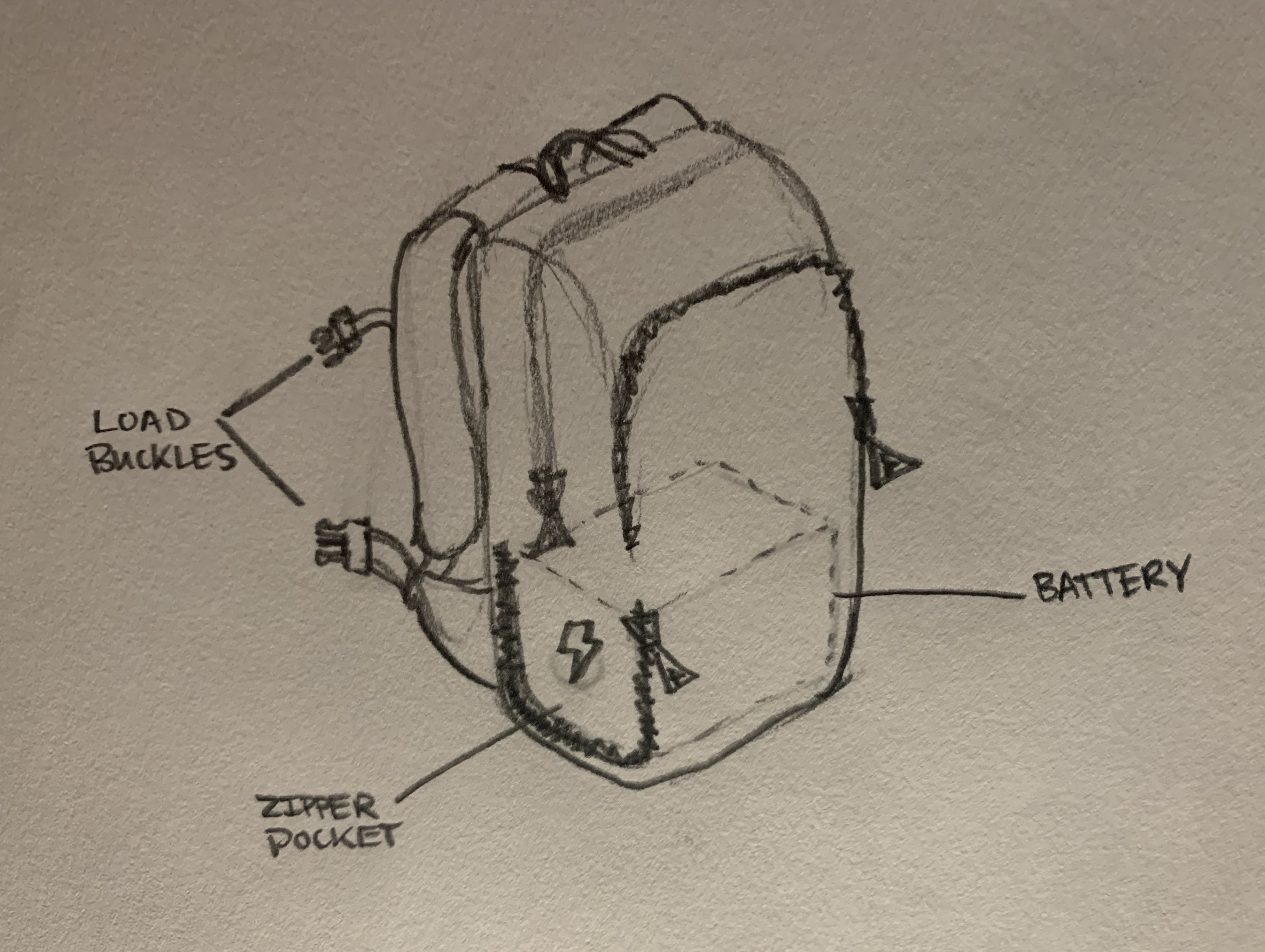

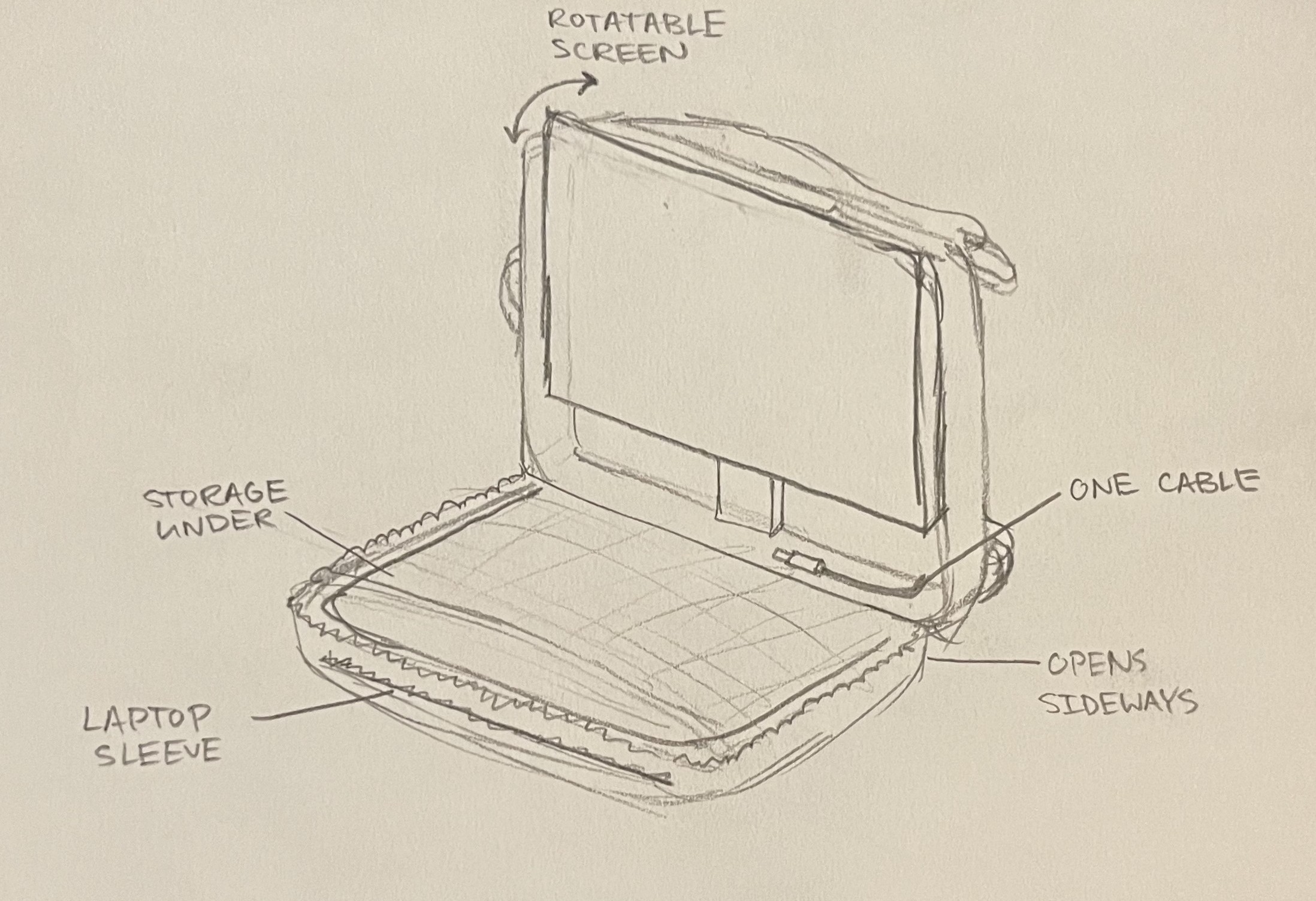

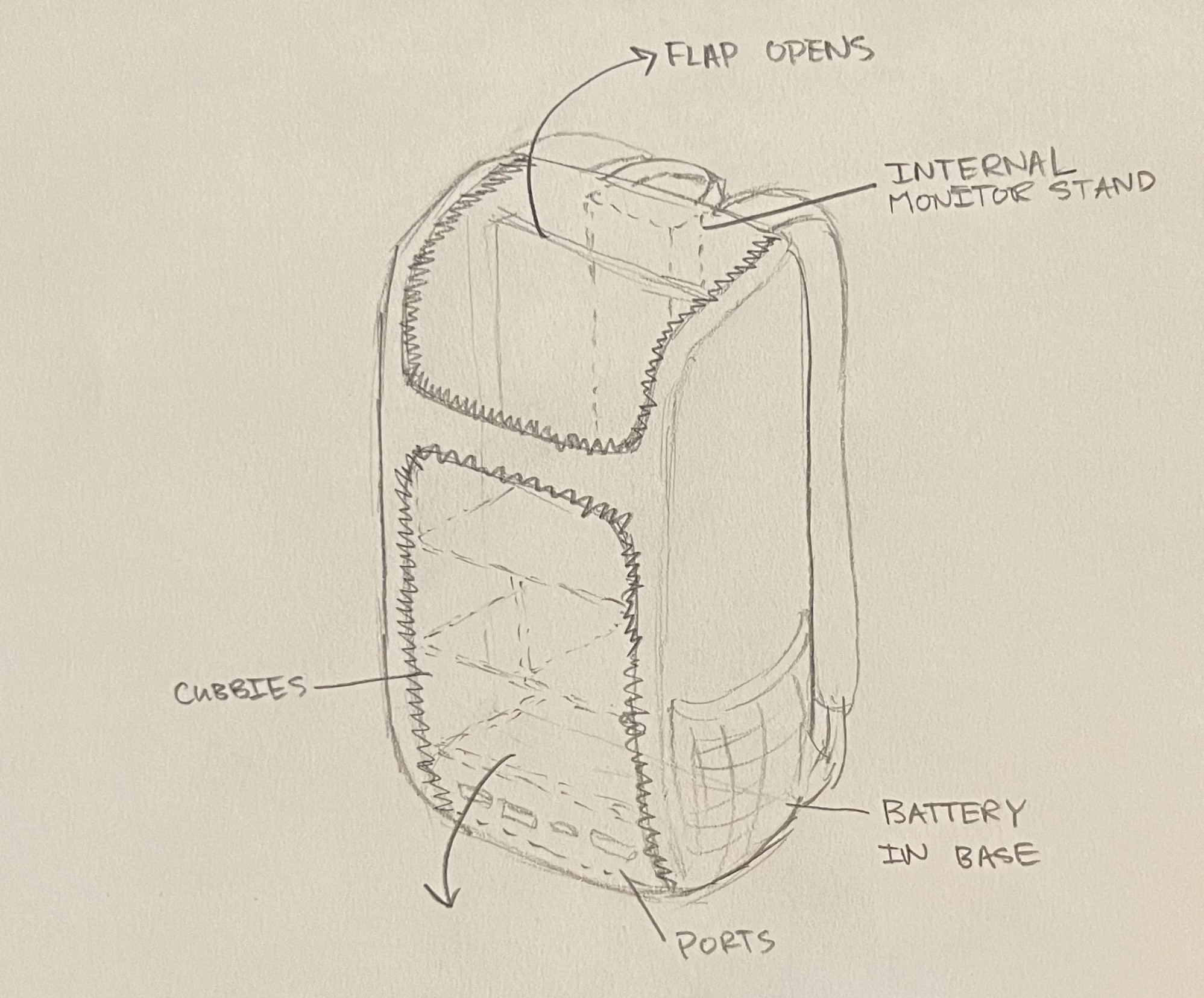

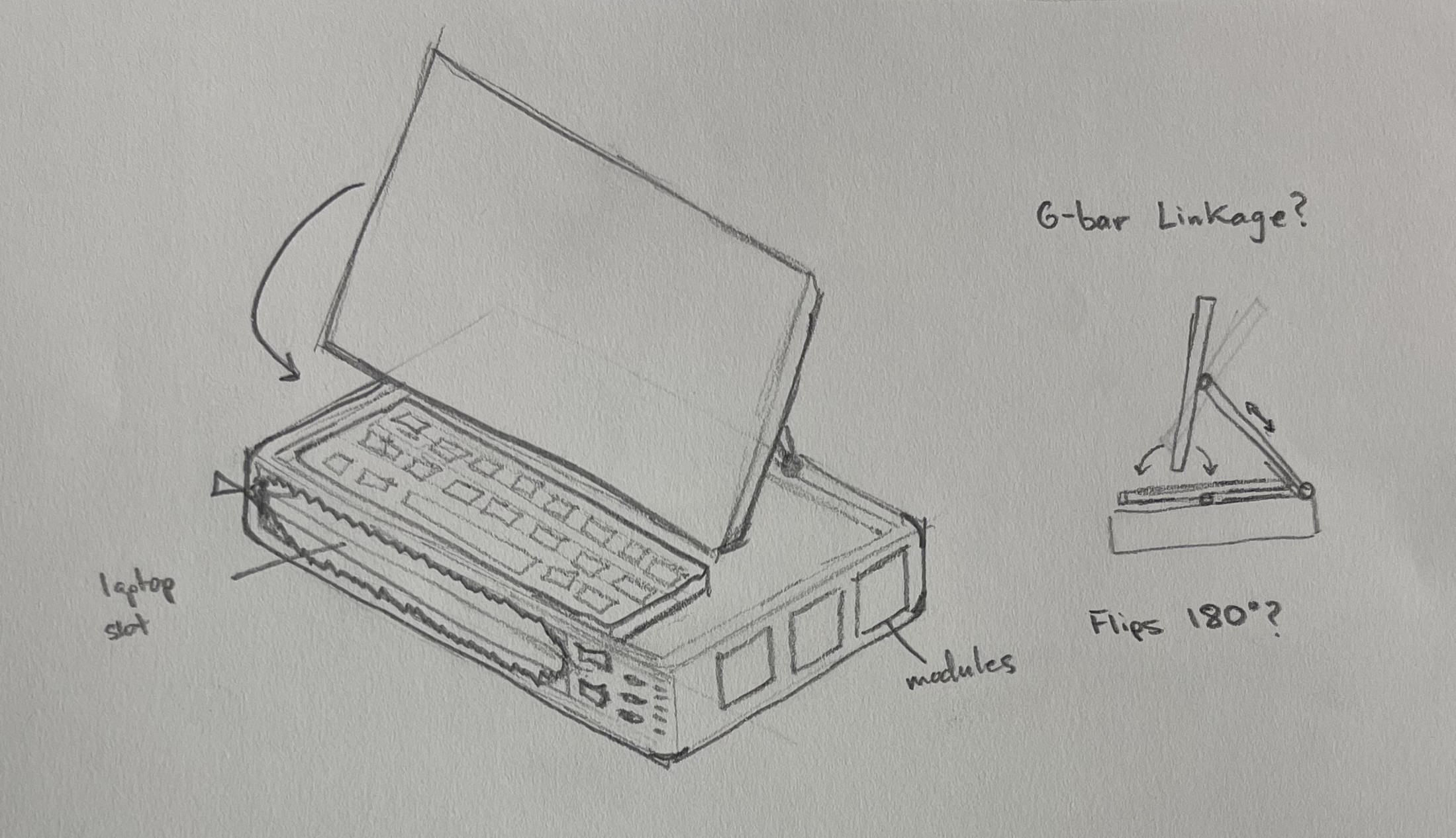

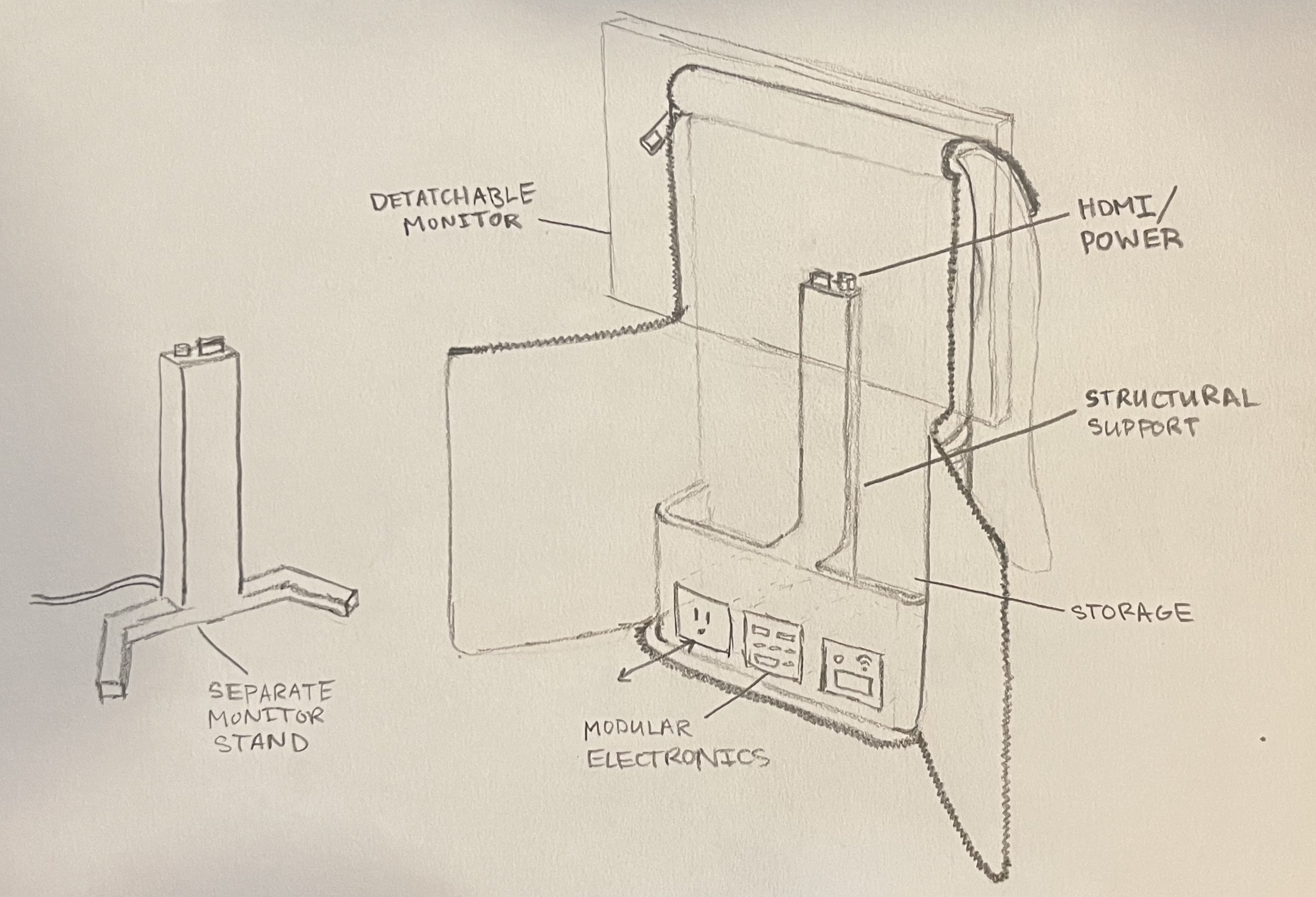

Below are some of my sketches from various stages in the process from early ideas to more refined concepts.
